Product Description

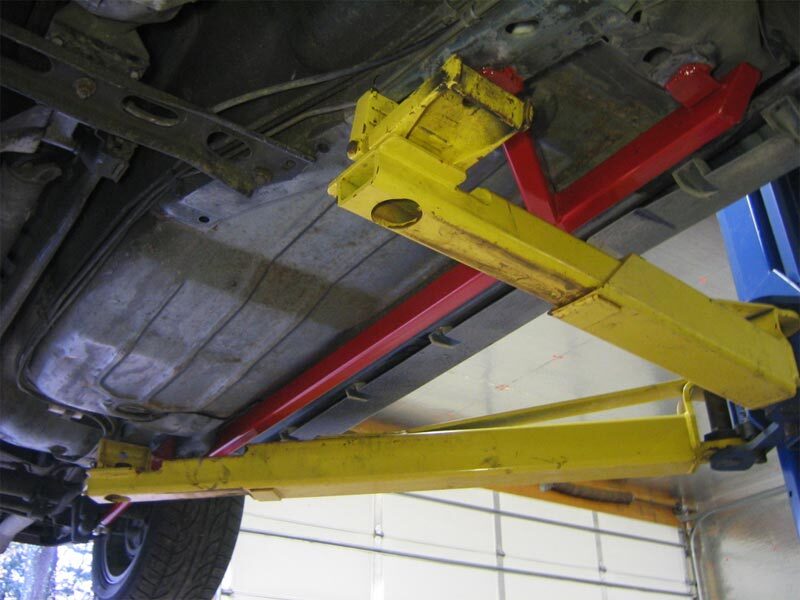

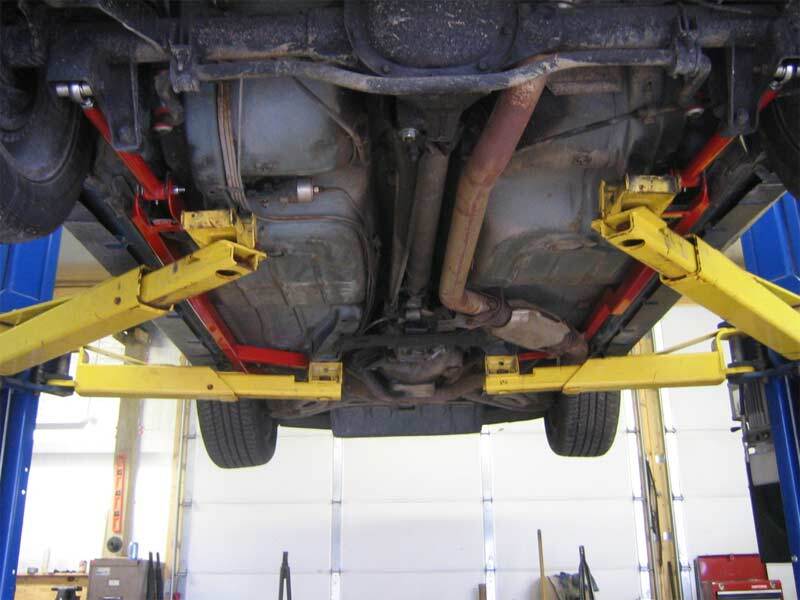

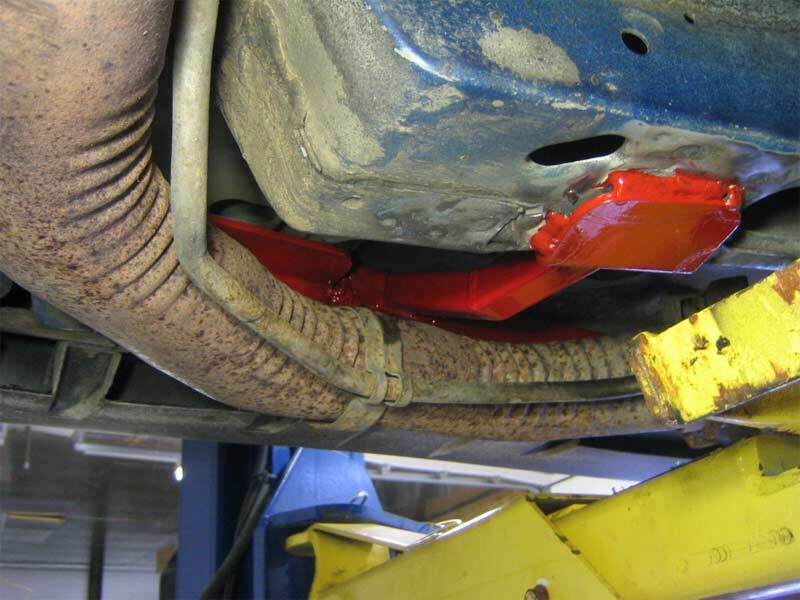

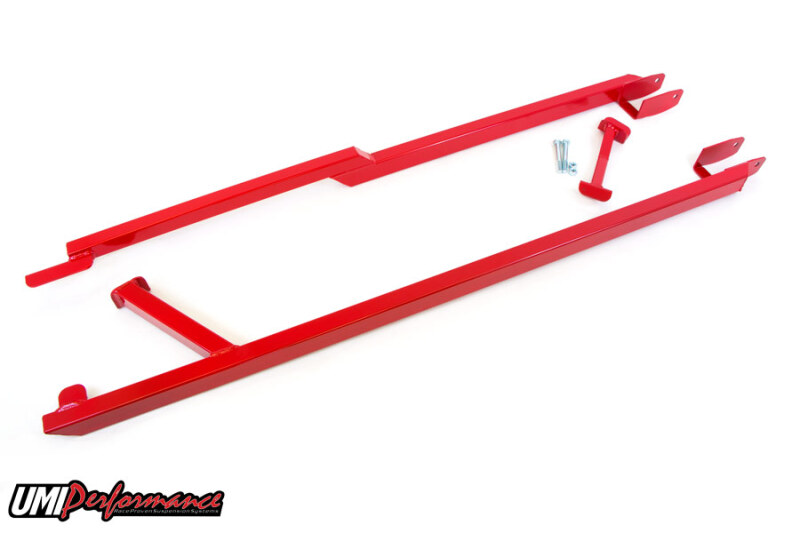

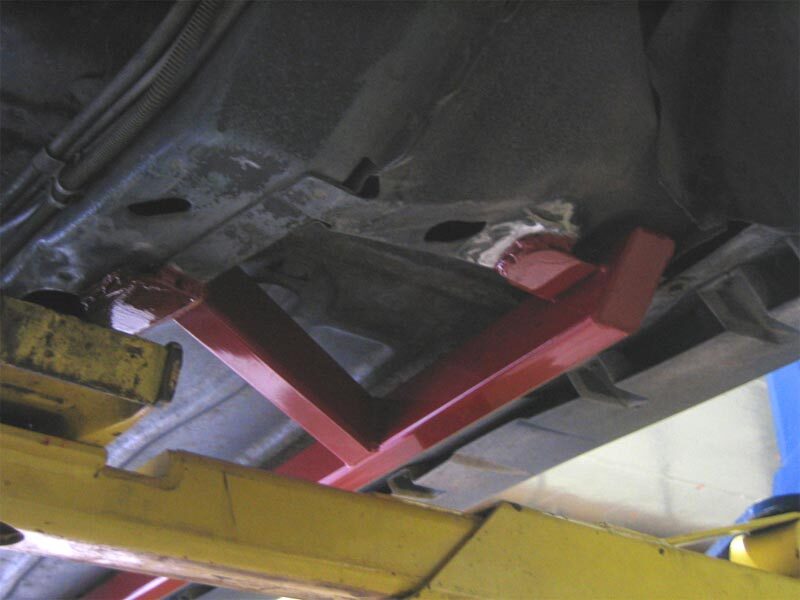

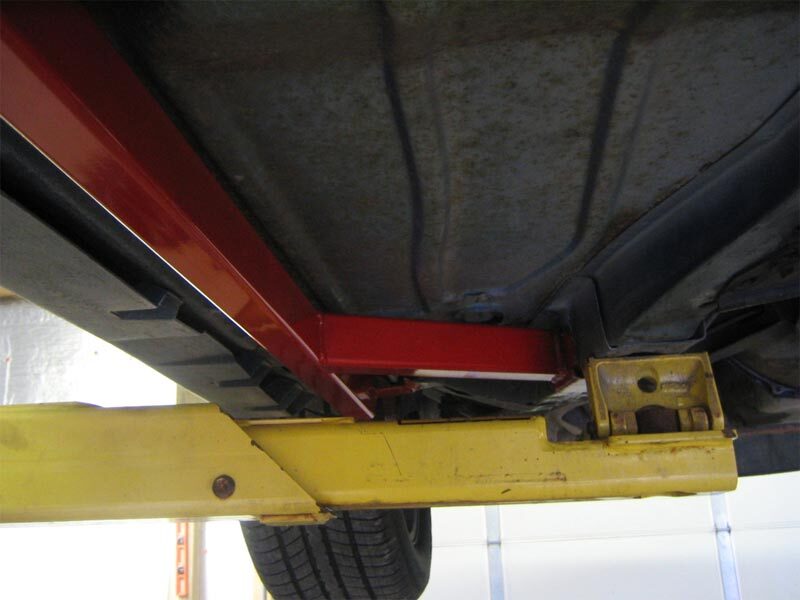

Minimize chassis flex and increase performance capabilities on your 1982-1992 GM F-Body with boxed style weld-in subframe connectors from UMI Performance. Subframe connectors are a must chassis upgrade when racing and hard driving habits are present. They greatly improve your car's handling ability while reducing t-top squeaks, dash rattles and quarter panel flexing. Subframe connectors essentially tie the front and rear steel subframes together, resulting in a stiffened and strengthened chassis; allowing better weight transfer and improved traction when launching. When strength is a concern, square tubing has greater torsion resistance over tubular designs. Subframes do not effect ground clearance and weld-in style requires no bolts to tighten ever and less chance of flex compared to bolt-in types. Our subframe connectors for the third generation F-Body are one of the strongest set-ups on the market. This unique design utilizes a 3 piece design, allowing (6) major weld points through out the chassis of the vehicle. Subframe connectors fit hard top, T-Top and convertible models. Features: - Built using 2.000" x 1.250" x 0.120" Mild Steel Rectangular Tubing - CNC Machined 0.188" Thick Mild Steel Mounting Points - Uses Control Arm Mounting Point for Increased Strength - Precision MIG Welded Construction - Brilliant Durable Powder Coat Finish Installation: Weld-in only, installs in approximately 2 hours, all necessary hardware and detailed installation instructions included.
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1988 | Chevrolet | Camaro | Base |
| 1982-1986 | Chevrolet | Camaro | Berlinetta |
| 1985-1990 | Chevrolet | Camaro | Iroc-Z |
| 1987 | Chevrolet | Camaro | LT |
| 1989-1992 | Chevrolet | Camaro | RS |
| 1992 | Chevrolet | Camaro | RS Heritage Edition |
| 1982-1987 | Chevrolet | Camaro | Sport |
| 1982-1987,1991-1992 | Chevrolet | Camaro | Z28 |
| 1992 | Chevrolet | Camaro | Z28 Heritage Edition |
| 1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
| 1982-1992 | Pontiac | Firebird | Base |
| 1989-1992 | Pontiac | Firebird | Formula |
| 1982-1986 | Pontiac | Firebird | S/E |
| 1982-1992 | Pontiac | Firebird | Trans Am |
| 1989-1992 | Pontiac | Firebird | Trans Am GTA |
| 1989 | Pontiac | Firebird | Trans Am GTA SE |
