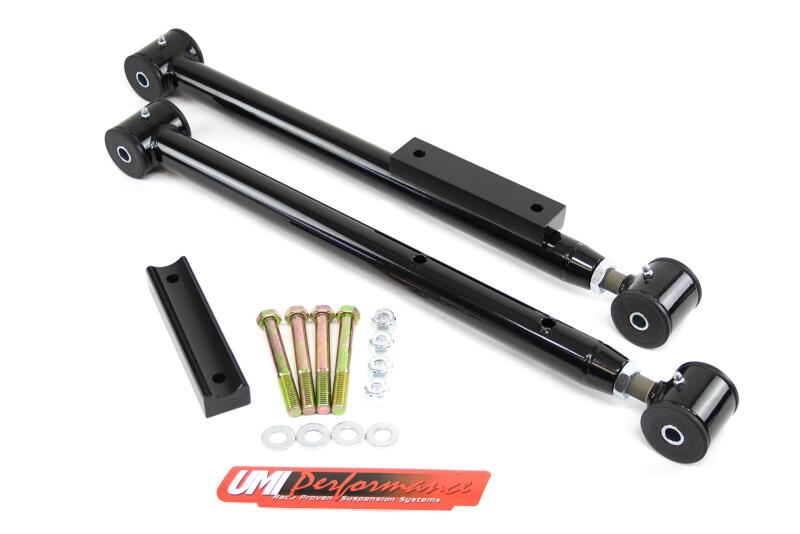

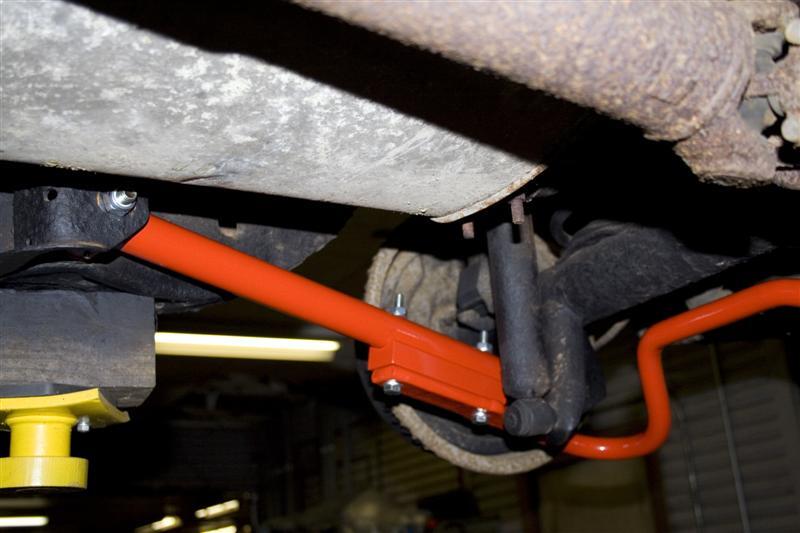

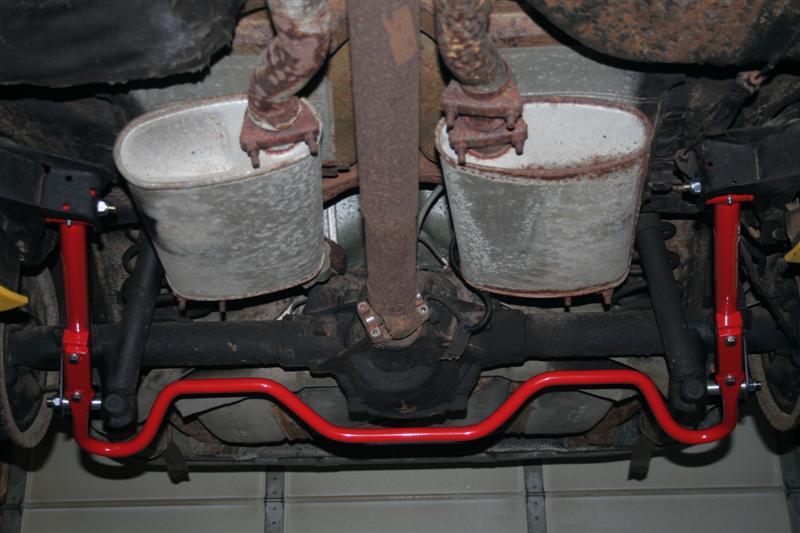

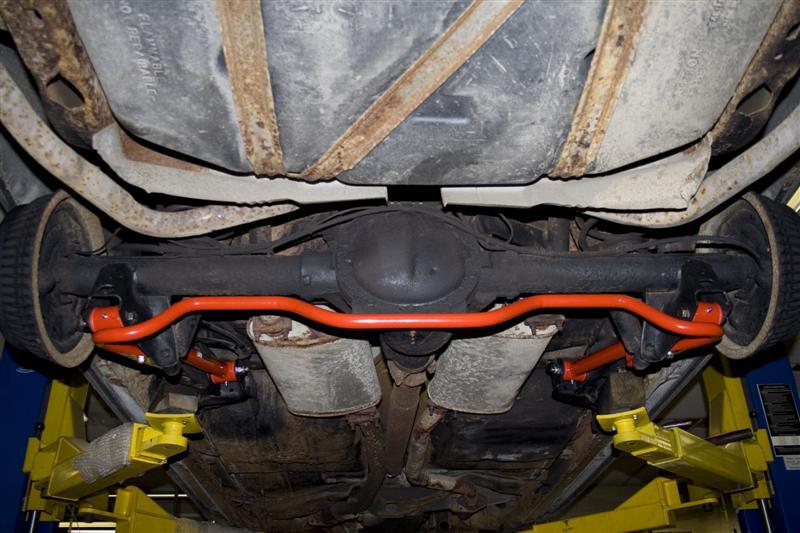

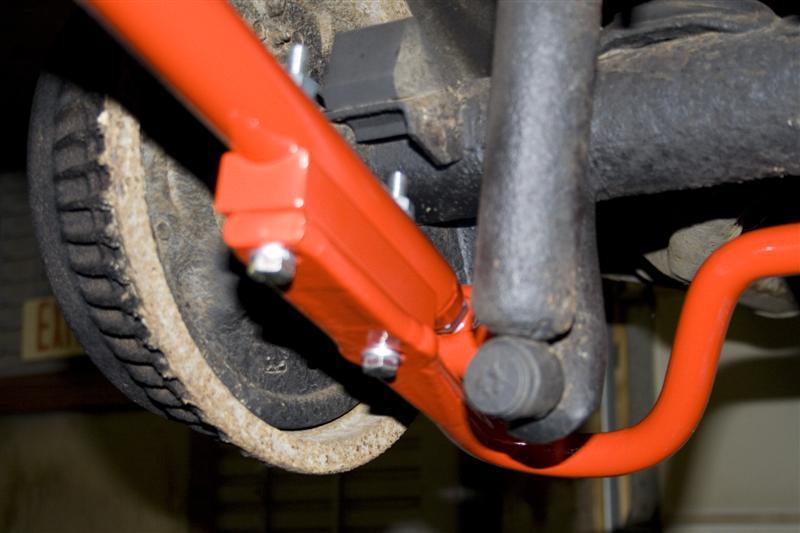

UMI Performance extended length control arms are designed to properly center the rear wheels in the vehicles wheel well on the Impala SS. These control arms are extended 5/8†but also feature additional adjustment to perfectly center the rear end. The adjustment allows the user to lengthen or shorten the control arms an additional ¼†beyond the already extended 5/8 of an inch. The control arms are built from 1.500†DOM tubing and fully TIG welded for the utmost in strength. Control arms also feature the correct provisions for adding a stock or aftermarket sway bar. The provided sway bar holes are reinforced with a 0.120†all thickness steel sleeve TIG welded and sanded in place. The sway bar attaches to the control arms using a billet aluminum spacer contoured correctly to follow shape of the round tubing and properly attach the sway bar to the control arms in the factory location. NOTE: In some cases, depending on ride height variation, it may be necessary to install a longer driveshaft when using extended length control arms.
This Part Fits:
| Year | Make | Model | Submodel |
|---|
| 1991-1992 | Chevrolet | Caprice | Base |
| 1991-1996 | Chevrolet | Caprice | Classic |
| 1993-1994 | Chevrolet | Caprice | Classic LS |
| 1991-1993 | Chevrolet | Caprice | Classic LTZ |
| 1994-1996 | Chevrolet | Impala | SS |
